Getting Your First Electric Kiln

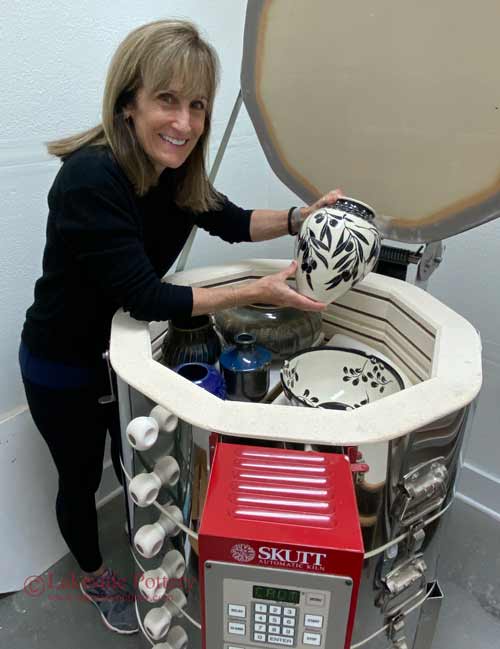

In the kiln room

Complete Guide to Selecting, Installing, and Safely Operating Electric Pottery Kilns for Home Studios

Whether you’re buying your first kiln, new or used, understanding what to look for before you plug it in is essential. A used kiln can be an excellent and affordable way to start firing your own ceramics, but it requires careful inspection to ensure it’s safe, reliable, and properly supported. The guide below explains what to check, how to set up your space, and the key steps for safe and successful firing for years to come.


Electrical Requirements

  • Power Capacity: Most kilns need 30–60 amps on a 220–240V circuit. Have an electrician verify service capacity.
  • Dedicated Circuit: Connect the kiln directly to the breaker panel on its own circuit. Typical install cost ranges about $400 to –$900 depending on distance and access.
  • Voltage Check: Many kilns are designed for 240V; 220V usually works but may heat more slowly and reduce attainable top temperature.

Typical Electrical Load Examples

Kiln Size Voltage Amperage Recommended Breaker Wire Gauge
Small test kiln (0.5–1 cu ft) 120 V 15 A 20 A #12
Medium kiln (2-43 cu ft) 240 V 30–40 A 40 A #8
Large kiln (7+ cu ft) 240 V 48–60 A 60 A #6


Kiln Size and Condition

  • Size: Match kiln volume to your production rhythm. Smaller kilns fire more frequently and efficiently; larger kilns cost more to run and take longer to load.
  • Firing Range & History: Ask typical cone levels and frequency; repeated high-temp firings shorten element life.
  • Age & Elements: Check ownership duration and last element replacement. Typical element life is ~80–120 firings depending on temp and care.

Cost of Operation

A mid-size electric kiln typically uses about 35–45 kWh for a cone 06 bisque firing ($6–8) and 50–60 kWh for a cone 6 glaze firing ($8.50–10.50), based on an average electricity cost of $0.17 per kWh.

Electricity costs vary by region and season, but these estimates offer a reliable baseline for planning your firing expenses. Regular maintenance, efficient kiln loading, and proper insulation can reduce overall energy use

More cost details including hidden costs


Selecting Kiln Shelves and Posts

Choosing the right kiln shelves is essential for both safety and performance. The wrong shelves can warp, crack, or fuse with glaze after only a few firings. When selecting shelves, consider your kiln type, firing temperature, atmosphere (oxidation or reduction), firing frequency, and ware weight.

Common shelf materials include:

  • Cordierite: economical and ideal for electric kilns up to cone 6–8, though heavier and prone to warping at higher temperatures.
  • High Alumina: stronger and rated to cone 10–11; good for electric or gas kilns.
  • Silicon Carbide (Nitride-Bonded): thin, lightweight, and durable, best for gas, soda, and reduction kilns. Not recommended for electric kilns.

Don’t forget the kiln posts: they support the shelves and create airflow for even heating. Posts must be the same height within each level, free of glaze drips, and placed vertically to distribute weight evenly.

Regular maintenance: applying kiln wash, reversing shelves, and storing them upright, will greatly extend their lifespan.

More about Kiln furniture


Temperature and Cone Chart

Cone °F °C Typical Use
06 1828°F 998°C Bisque **
04 1940°F 1060°C Bisque
6 2232°F 1222°C Mid-fire glaze
10 2345°F 1285°C High-fire stoneware

** Lakeside Pottery Studio bisque fire at cone 06


Venting and Safety

  • Venting: Vent outdoors or fire in a well-ventilated detached space. Glaze firings release fumes.
  • Safety Checklist: Never leave a firing unattended, clear flammables, use a pyrometer and over-temp protection, wear gloves and eye protection, and allow ~24 hours to cool before unloading.

    More about kiln venting


Firing Knowledge and Practice

  • Ensure bone-dry greenware before bisque.
  • Prevent glaze drips and contamination between companion pots.
  • Learn ramp-hold programs for accurate glaze results and thermal management.

    Firing an Electric Kiln


Maintenance and Longevity

  • Vacuum the interior to remove dust and flakes.
  • Inspect elements and thermocouples periodically.
  • Keep lid balanced and hinges tight; refresh kiln wash as needed.


Service, Technology, and Brand Support

  • Service Availability: Confirm local technicians for the brands you’re considering.
  • Smart Kilns: Choose a computerized controller for precision and repeatability.
  • Recommended Brands: Skutt (strong service and legacy parts availability), plus L&L and Paragon are widely supported.

    Computerized Electric Kiln Troubleshooting Reference Guide


Operating Environment

Electric kilns must be installed and used in a temperature-controlled indoor space. Do not operate or store a kiln in a garage, shed, or other unheated area—especially during winter or damp conditions. Extreme cold or fluctuating temperatures can cause serious firing inconsistencies and even electrical failure.

Cold environments can lead to:

  • Uneven heating and thermal shock in the ware and kiln bricks.
  • Condensation and moisture buildup inside electrical components, increasing the risk of short circuits or corrosion.
  • Reduced controller accuracy, as thermocouples and sensors respond erratically in unstable ambient conditions.
  • Relay failure due to cold-related arcing and contact fusing.

Relay Caution:

Kiln relays cycle electrical current on and off to regulate heat. In cold or humid spaces, condensation or contraction inside a mechanical relay can cause arcing—a spark that jumps between contacts as they open or close. Repeated arcing may fuse the contacts shut, leaving the relay permanently on. When this happens, the kiln can continue heating uncontrollably, creating a fire hazard or damaging elements.

Always ensure the firing environment remains between 55°F and 85°F (13°C–29°C) with moderate humidity. If the kiln has been stored in a cold location, allow it to warm gradually to room temperature for 12–24 hours before firing.

For maximum safety and reliability, consider solid-state relays (SSR), which have no moving parts and are sealed against moisture, eliminating cold-related arcing risks.

A controlled indoor environment not only protects the kiln’s electrical system but also ensures consistent results, longer element life, and accurate temperature control.


Insurance and Placement

Check with your homeowner’s insurance and meet local building codes for installation and ventilation to protect your property and investment.


Closing Note

Choosing your first kiln is both exciting and important. Take time to verify power requirements, ensure proper ventilation, and learn safe firing habits early on.



Quesions & Answers

Q1: Is it a bad idea to install a pottery kiln in an open family room or guest-space basement?

A: Yes, installing a kiln in an open living space is not recommended. Kilns release heat, moisture, and firing byproducts that should not mix with areas where people relax or sleep. Manufacturers and safety offices emphasize using outdoor-exhaust ventilation and placing kilns in a dedicated, well-ventilated area that can be closed off from living spaces. See guidance from Skutt and from Princeton EHS.

Ventilation: If a basement is your only option, create a small kiln room or closet and exhaust fumes to the outdoors with a downdraft system. Examples include Skutt EnviroVent 2 and L&L Vent-Sure. L&L’s ventilation pages explain hole sizing and the need to balance airflow so you remove fumes without over-cooling the kiln. See what to do to ventilate and the ventilation overview. For a plain-English summary of why vents protect people and improve results, see this Ceramic Arts Network article.

Room separation and air: Keep the kiln in its own room with a door, provide make-up air, and avoid firing while people are using the adjacent space. Skutt’s kiln-room design notes describe the downdraft method and outside discharge routing. See Designing a Kiln Room.

Clearances and surfaces: Follow the manufacturer’s required clearances from walls and combustibles, and use a non-flammable floor under the kiln. Skutt lists typical wall clearances and placement considerations here: Kiln installation clearances. Additional general safety notes appear in the Skutt KilnMaster Manual.

Electrical: Use a dedicated circuit sized for your specific kiln and installed by a licensed electrician. Skutt outlines breaker sizing and dedicated circuits here: Kiln room wiring. For background on power and voltage selection, see this field guide overview.

Monitoring: Install carbon monoxide alarms outside the kiln room and follow the manufacturer’s firing instructions. See safety notes from Digitalfire and Princeton EHS.

Materials awareness: Certain materials and colorants can generate additional fumes at temperature. OSHA highlights exposure concerns for metals such as manganese; see the OSHA manganese page. Always store raw materials sealed and minimize dust.

Bottom line: For a city basement that serves as a family or guest space, an open-area kiln install is a poor choice. If you proceed, build a dedicated enclosure with outdoor downdraft ventilation, provide room air exchange and make-up air, maintain proper clearances, use a dedicated electrical circuit, and monitor air quality. These steps align with current manufacturer and safety guidance and protect day-to-day living comfort.


Q2: How do I decide what kiln size and voltage I need for a home studio?

A: Start with your power availability and project scale. Small tabletop kilns (120 V) work for jewelry or tests, but full pottery kilns usually require 240 V. Check your home’s electrical panel before purchasing—most 6–10 ft³ kilns need a dedicated 40–50 amp circuit. For help matching kiln size to your breaker capacity, see Skutt Installation Specs and Electrical Information for Kilns,
Estimating Electric Kiln Firing Costs.


Q3: What’s the difference between top-loading and front-loading kilns?

A: Top-loading kilns (most common for hobby studios) are less expensive and lighter, but loading can be hard on your back. Front-loading kilns cost more but offer ergonomic loading and better temperature uniformity. Choose based on your space and the weight of your work. See the Ceramic Arts Network kiln selection guide.


Q4: How far should my kiln be from walls and other objects?

A: Keep at least 18 inches clearance on all sides and above. Walls and floors should be non-combustible (concrete, ceramic tile, or cement board). Never place kilns near curtains, stored glazes, or furniture. Manufacturer clearance charts: Skutt Kiln Room Design · L&L Ventilation Overview.


Q5: Do I need both a vent system and room ventilation?

A: Yes. A downdraft vent removes fumes from inside the kiln, but you still need room-level ventilation to replace air and control heat buildup. Combine both: an outdoor-exhaust vent plus at least one window fan or HVAC return supplying make-up air. See How and Why to Use a Kiln Vent,
All About Kiln Vents


Q6: Can I vent a kiln into my dryer duct or existing HVAC line?

A: No. Dryer or HVAC ducts recirculate air and are not designed for kiln exhaust temperatures or vapors. Always install a dedicated duct that terminates outdoors using high-temperature metal piping. See Skutt EnviroVent 2 Manual, L&L Vent-Sure Instructions
, All About Kiln Vents.


Q7: How do I protect my electrical system from kiln surges?

A: Use a dedicated breaker and install a whole-house surge protector. Avoid extension cords. Have a licensed electrician check that wire gauge and breaker rating match the kiln’s amperage. Reference Skutt Wiring Guide.


Q8: Is it safe to fire overnight or when I’m not home?

A: No. Even modern kilns with controllers can fail. Always be present during firing, at least nearby to monitor. Fire during daytime, and never while sleeping or away. See Princeton EHS Ceramic Safety.


Q9: What type of floor should my kiln sit on?

A: A non-flammable, level surface—concrete slab or ceramic tile on cement board. Avoid wood floors or carpets. If necessary, place a layer of cement board topped with sheet metal extending 12 inches around the kiln base. See Digitalfire kiln setup notes.


Q10: How should I handle kiln fumes and moisture in small basements?

A: Install an outdoor downdraft vent and a dehumidifier. Firing drives off water vapor from clay and glazes—without venting, that moisture condenses on walls and wiring. See Ceramic Arts Network: Kiln Vent.


Q11: How often should I replace kiln elements and thermocouples?

A: Typically after 100–150 firings, or sooner if you notice uneven heating or longer heat-up times. Keep a log of cone performance and element resistance. Skutt Element
L&L Elements Hot Kilns Elements


Q12: Can I share one kiln circuit with other appliances?

A: No. A kiln must be on its own dedicated breaker and outlet. Sharing increases fire risk and causes voltage drops that damage elements and controllers. Always confirm amperage and wire gauge match the kiln specs. See Skutt Kiln Wiring.


Q13: What’s the safest way to load and unload a hot kiln?

A: Wait until the temperature drops below 125 °F (50 °C). Use heat-resistant gloves and avoid leaning over an open lid. Sudden cool air can cause cracking. Skutt’s Kiln Safety Notes outline loading procedures.


Q14: How can I reduce my electric bill when firing frequently?

A: Fire full loads, maintain elements for efficiency, and program slow-cool segments instead of multiple small firings. Consider firing at off-peak hours if your utility offers reduced rates. Energy-saving tips: 8 Ways to Make Your Electric Kiln More Efficient.


Q15: Do I need a kiln sitter or digital controller?

A: Manual kilns with kiln sitters work, but digital controllers give precise firing schedules, automatic holds, and better repeatability. They’re strongly recommended for glaze development and safety. Comparison chart: Electric Kiln Firing Basics.


Q16: What’s the best practice for storing glazes and materials near the kiln?

A: Store all glazes and chemicals away from heat—ideally in a different room. Many glaze materials can volatilize or degrade with heat exposure. Keep lids tightly closed and label clearly. For chemical safety, see Princeton EHS Ceramics Safety.


Q17: Can I use the warm kiln room to dry greenware?

A: It’s tempting, but generally not recommended unless the space is well-ventilated and the temperature is gently controlled. A kiln room can become excessively dry and hot during or after firing, which can cause uneven drying, cracking, or warping in greenware. If you do use the residual warmth, keep greenware several feet from the kiln, shield it from direct radiant heat, and cover it loosely with plastic or cloth to slow evaporation. Ideal drying temperature is around 80-90 °F (27-32 °C) with moderate humidity. See drying guidance from Ceramic Arts Network: How to Dry Clay for Successful Firing and Digitalfire: Drying and Bisque Firing.
