What is Epoxy Working and Cure Times by Temperature for Ceramic and Sculpture Repair





Epoxy Cure Times for Ceramic, Pottery, Resin, and Stone Repair

5-Minute PC-Clear • JB Weld • Loctite • PC-11 • Resin Epoxy


Epoxy cure time isn’t one-size-fits-all, it’s hugely dependent on temperature. In ceramic and sculpture repair, adjusting your workspace by just 20–30 °F can either cut or quadruple cure times for common mending epoxies like PC-Clear, JB Weld, Loctite and reson epoxy. Understanding and controlling this variable is key to achieving strong, durable bonds and efficient restoration schedules.


Mending and Filler Epoxies

  1. Mending: We use a low-viscosity, fast-setting epoxy (about 5-minute working time) to reattach broken parts cleanly and precisely.

  2. Filling: We use PC-11, a paste-like structural epoxy, to fill gaps, rebuild losses, and reinforce the structure.


Heating chamber / oven temperature



Why Temperature Control Matters

Epoxy cures through a chemical reaction that speeds up with heat and slows dramatically in the cold. Precise temperature control directly affects:

  • Working time: how long the epoxy remains usable after mixing.

  • Cure speed: how quickly the bond develops functional and full strength

  • Viscosity and wetting: higher temperatures improve the epoxies initial viscosity, making it more fluid and allowing better wetting of surfaces during the early mending stage.
    .
  • Bond quality: stable, predictable curing prevents weak joints or distorted fills.

A temperature shift of only 20–30 °F can make the difference between a sluggish 48-hour cure and a rapid, stable bond ready in just a few hours.

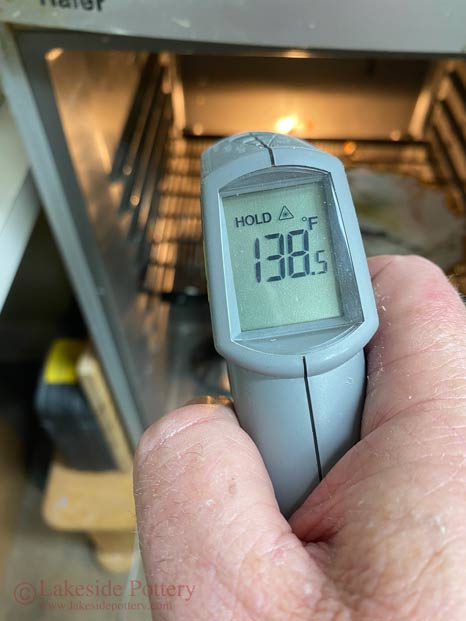

Reducing cure time in 140 degree oven
Reducing cure time in 140 degree oven



Full Cure Is Essential

Before sanding, carving, or shaping epoxy repairs, especially when working with PC-11 filler epoxy, it’s critical to wait for full cure. Sanding too early can cause gumming, surface tearing, or imprecise shaping. Allowing complete cure time ensures clean, crisp detailing and a professional finish.



How We Accelerate Epoxy Cure Times Safely

To keep projects on schedule and maintain quality, we use a temperature-controlled curing oven with even heat distribution and no hot spots. This controlled environment:

  • Reduces cure time significantly

  • Improves restoration turnaround

  • Allows efficient staging of multiple projects without compromising bond integrity

Mending

Use one of the mending epoxies (PC-Clear, JB Weld 5-Minute, or Loctite 5-Minute). Apply a thin layer (on porous materials, apply on both sides), align and support the parts, and let it cure fully before cleanup and applying PC-11 filler epoxy.

The tables below show how temperature affects working and cure times.


Epoxy Cure Stages Explained

  • Working time: Period to position parts before gel starts.
  • Functional Cure: Parts can usually be handled without shifting, but the bond hasn’t reached full strength yet.
  • Full Cure: Epoxy has fully cross-linked and reached maximum bond strength, chemical resistance, and stability.



PC-Clear 5-Minute Epoxy Temperature Reference

Temp (F / C)
Working Time
Functional
Full Cure
50 / 10 6-8 min 3-4 hr 36-48 hr
70 / 21 4-5 min 1 hr 16-24 hr
80 / 27 3-4 min 30-45 min 12-16 hr
100 / 38 2-3 min 15-25 min 6-10 hr
140 / 60 1-2 min 5-10 min 2-4 hr

octite-jd-weld-pc-clear-working-time-curve

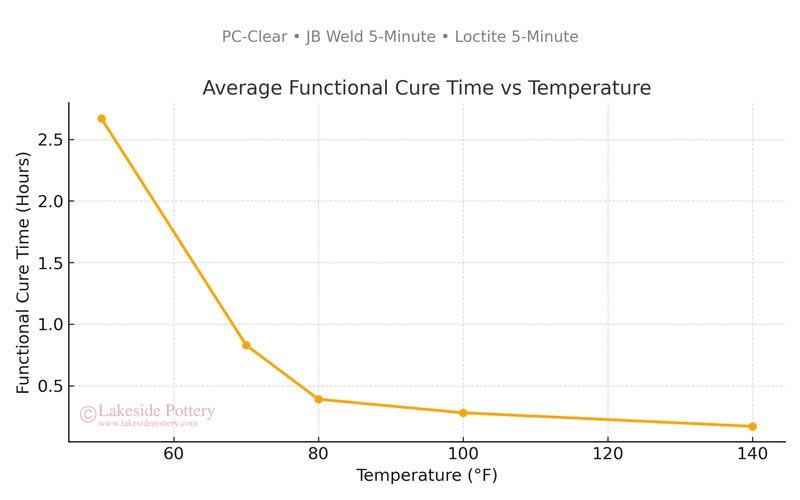

loctite-jd-weld-pc-clear-functional-cure-curve

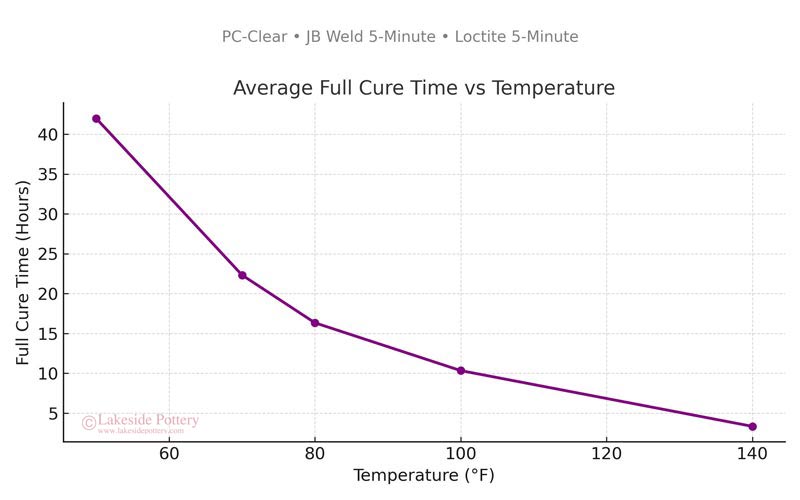

loctite-jd-weld-pc-clear-full-cure-curve.


Warning: Temps above 185 °F (85 °C) can permanently damage the adhesive and compromise the long-term integrity of the bond.



When Is It Safe to Handle Mended Pieces?

Understanding PC-Clear 5-Minute Epoxy at Room Temperature and in a Heated Chamber

The video below illustrates how PC-Clear 5-Minute Epoxy behaves at a room temperature of 75 °F. At lower temperatures, curing times lengthen considerably. To accelerate the process, we warm the epoxy cartridge in a 140 °F wax warmer and place the mended object in a heated chamber set to the same temperature. This controlled heat significantly shortens the cure time.

Keep an eye on the timer to observe the difference.






JB Weld 5-Minute Epoxy Temperature Reference

Temp (F / C)
Working Time
Functional
Full Cure
50 / 10 5-7 min 2–3 hr 36-48 hr
70 / 21 3-5 min 30–60 min 16-24 hr
80 / 27 2-4 min 20–40 min 12-16 hr
100 / 38 2-3 min 10–20 min 6-10 hr
140 / 60 1-2 min 5–10 min 2-4 hr



Loctite 5-Minute Epoxy Temperature Reference

Temp (F / C)
Working Time
Functional
Full Cure
50 / 10 10-15 min 1-2 hr 36-48 hr
70 / 21 4-7 min 25-30 min 24-30 hr
80 / 27 3-5 min 20 min 18-24 hr
100 / 38 2-3 min 10-15 min 12-18 hr
140 / 60 1-2 min 5-10 min 3-5 hr



Filling with PC‑11

After the mending epoxy has fully cured, use PC‑11 to fill gaps and rebuild losses. PC‑11 is a paste-like filler (not a seam mender). Allow full cure before sanding or carving, this ensures the surface sands cleanly without gumming.

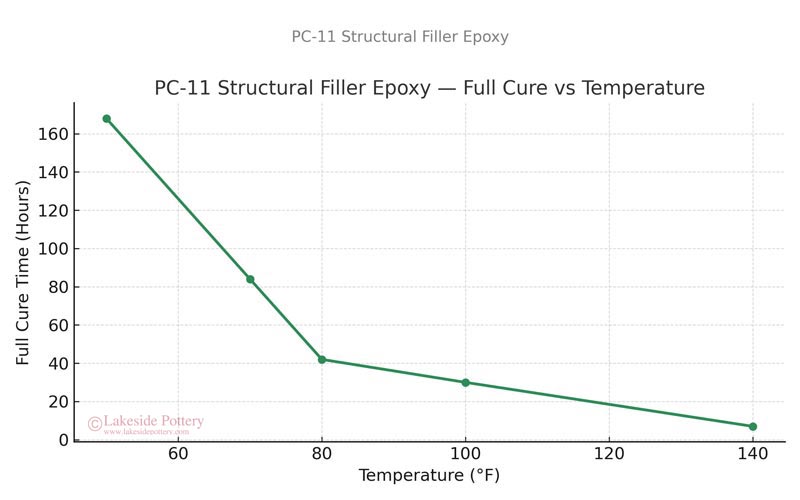

PC-11 Structural Filler Epoxy Temperature Reference

Temp (F / C)
Working Time
Functional
Full Cure
50 / 10 60-90 min 24-36 hr 7+ days
70 / 21 30-40 min
12-24 hr
2-5 days
80 / 27 20-30 min 8-10 hr 36–48 hr
100 / 38 10-15 min 4-6 hr 24–36 hr
140 / 60 5 min 2-4 hr 6-8 hr


loctite-jd-weld-pc-clear-full-cure-curve.



Appendix: Why Temperature Expedites Epoxy Curing

Epoxy curing is a thermosetting polymerization process, meaning that once the chemical reaction begins, it continues until the material hardens permanently. The reaction occurs when the epoxy resin and hardener are mixed, initiating crosslinking between molecules. This reaction is exothermic, releasing heat as bonds form.

The rate of this chemical reaction depends strongly on temperature. According to the Arrhenius equation, which describes how reaction rates change with temperature, even a small increase in temperature significantly increases molecular activity. As temperature rises, molecules move faster and collide more frequently, which accelerates the formation of crosslinks.
