Making Missing Sculpture or Ceramic Parts

There are several ways to recreate a missing part, and the videos below will demonstrate various techniques using clay, resin, or a combination of both. In Section B, we will explore the process through a series of step-by-step photo illustrations, focusing on using clay for reconstruction—an ideal method if you have access to a kiln


SECTION A

Making Missing Pottery Bowl Missing Section

How to accurately sculpt and place a missing segment using resin casting. Click picture for lesson details

Cementing and fixing broken stone sculpture lesson and how to


Adding a Missing Vase Base Section

How to sculpt a missing segment on a broken vessel or sculpture by taking impression and casting resin epoxy.

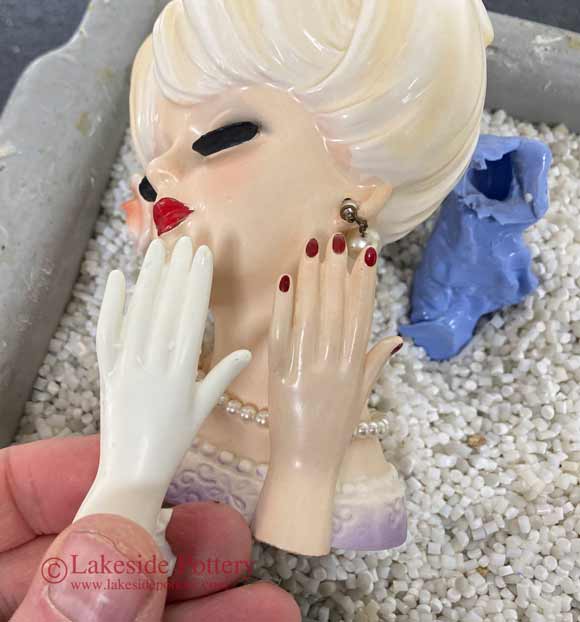

Recreating a Missing Sculpture/Vase Hand

In this abbreviated video lesson, you will see the process of reconstructing and restoring a missing hand on a sculpture or vase.


Recreating a Missing Sculpture Foot

In this vedio lesson, you will learn the step-by-step process of reconstructing and restoring a missing foot on a ceramic Nativity sculpture.


Missing Cup Handle Added With Gold Kintsugi

The restoration involved taking an impression of a similar handle, casting a duplicate in resin, and securely mounting it with metal pegs to ensure mechanical integrity. Finally, the 23.5K gold Kintsugi process was applied, honoring the mug’s history.

Sculpting a Handle: Clay, Resin, and Kintsugi Finish

A broken cup with sentimental value and missing a large handle segment was restored using 23.5K gold Kintsugi art. This tutorial is focused on making a handle using clay without the need to fire it in a kiln. Turn the speaker on if you need to hear explanations.




SECTION B

This sculpture arrived broken with several missing pieces, particularly the center part of the flower. The missing top flower piece was made out of clay using the same technique dentists use when capping a tooth. The clay was then fired, cemented, filled in, sanded, polished, and painted using an airbrush. Other missing pieces were made in the same manner.

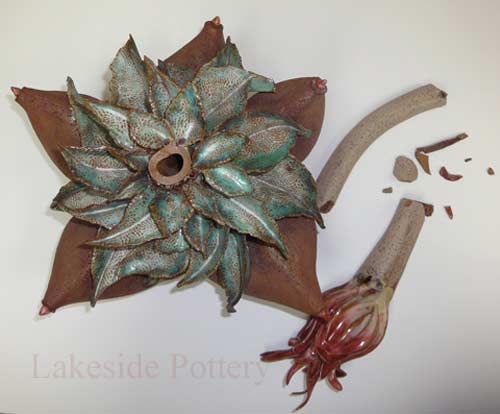

Broken Ceramic Sculpture
Broken Ceramic Sculpture

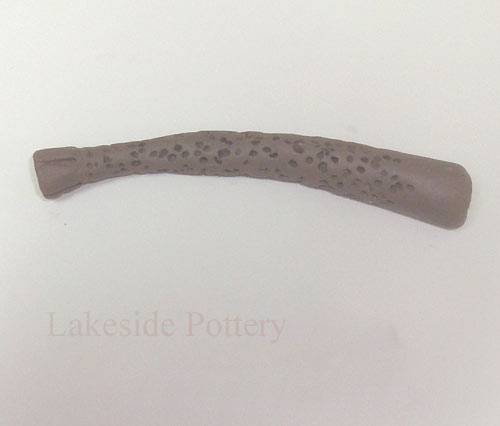

Make missing piece from clay
Make missing piece from clay

Kiln fired to 2300 degree F
Kiln fired to 2300 degree F

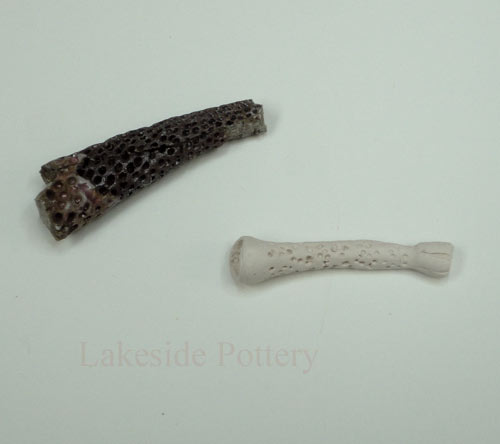

Out of kiln & ready to be assembled

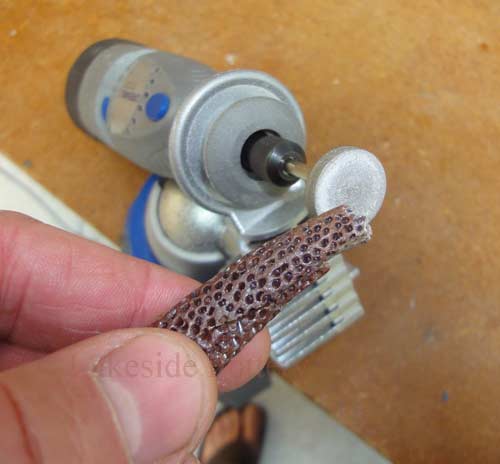

Grind for fit

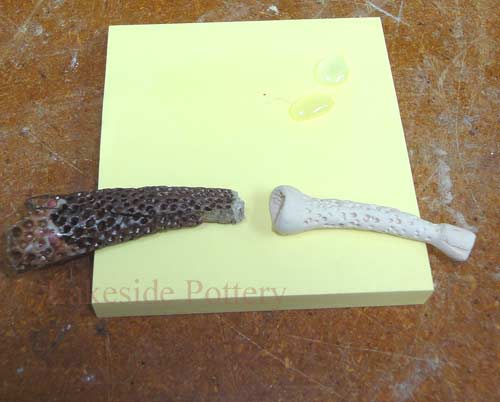

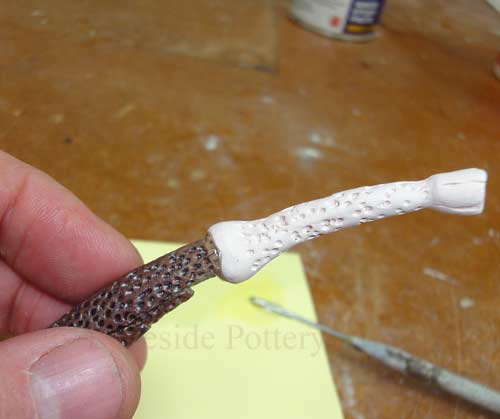

Ready to be cemented - 2-parts epoxy


Cemented

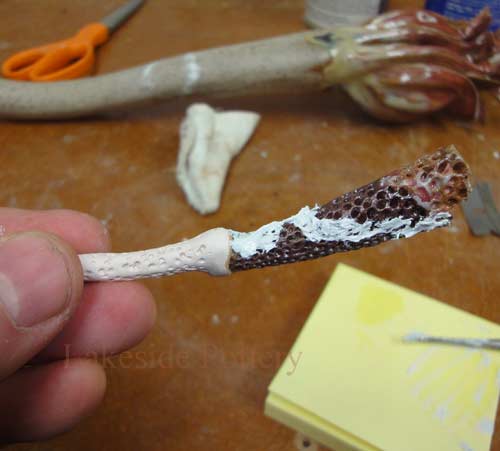

Cracks filled up
Grind for fit
Grinding to shape

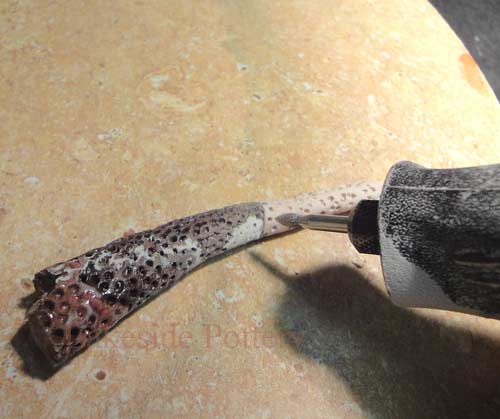

Drilled for surface texture
Drilled for surface texture

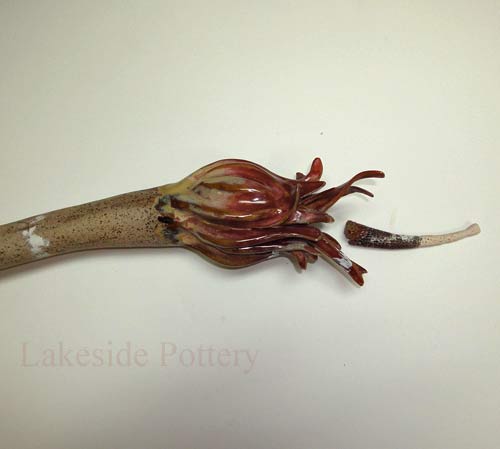

Ready for assembly
Ready for assembly

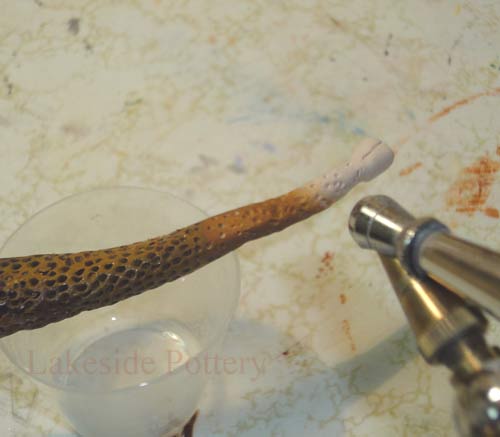

Paint with airbrush
Paint with airbrush

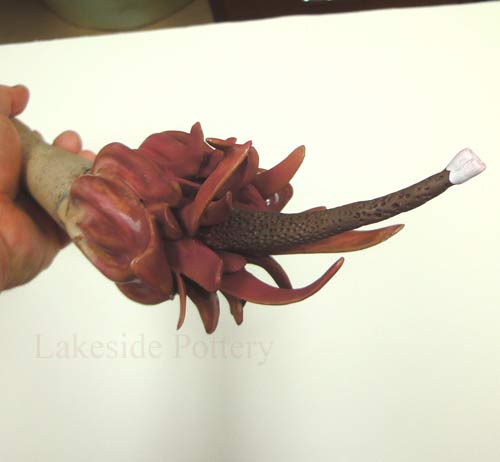

Sub assembly colored
Sub assembly colored

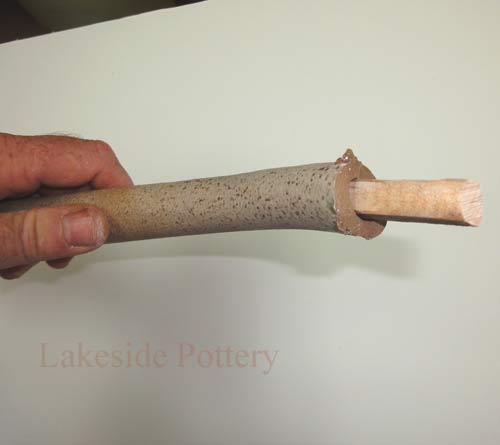

Ready to be cemented to base
Ready to be cemented to base

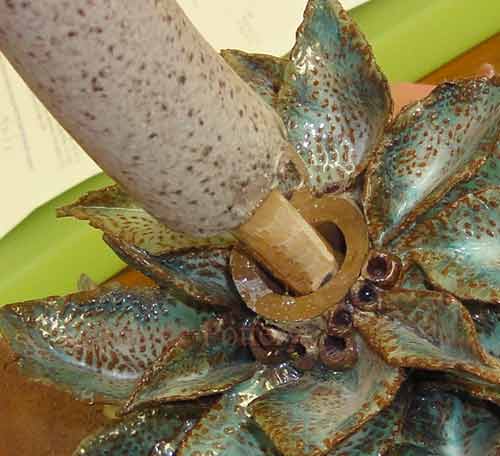

Cementing to base
Cementing to base

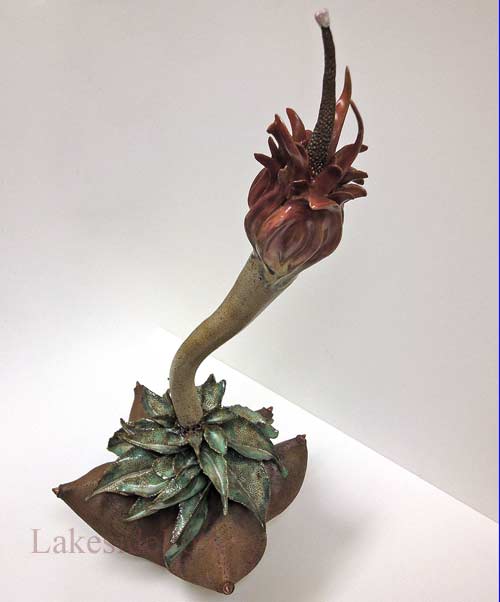

Restoration completed
Restoration completed
